- Udsolgt

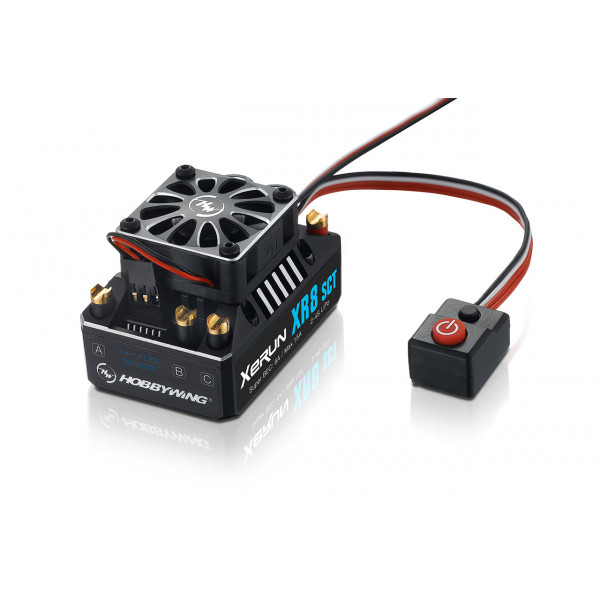

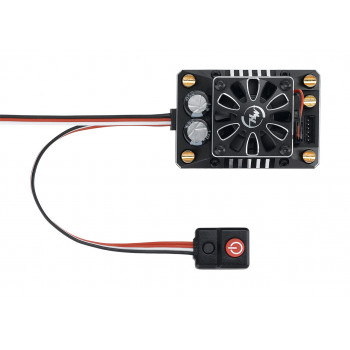

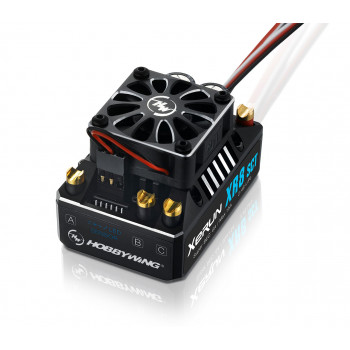

Hobbywing Xerun XR8 SCT Brushless ESC 140A, 2-4s LiPo, BEC 6A
1.059,00 kr.
Inkl. moms
Type
Scale
1/8th&1/10th
Brushed/Brushless
BL
Sensored/Sensorless
SD
Waterproof
No
Specifications
Cont./Peak Current
140A/880A
Input Voltage
2-4S Lipo/6-12 Cell NiMH
BEC Output
Switch Mode: 6V/7.4V,6A
Wires & Connectors
Input Wires
Red-12AWG-200mm*1/Black--12AWG-200mm*1
Output Wires
Blue -12AWG-200mm*1
Yellow-12AWG-200mm*1
Orange -12AWG-200mm*1
Input Connectors
No
Output Connectors
No
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
Size
30x30x10mm
Voltage Range
5-7.4V
Powered by
BEC
ESC Programing via
SET Button on ESC
Not Supported
LED Program Box
Not Supported
LCD Program Box
Supported
WiFi Module
Supported
OTA Programmer
Supported
Program Port
PRG/Fan Port
Firmware
Firmware Upgrade
Supported
Size & Weight
Size
54.1x37.2x36.1mm
Weight
90.5g
Applications
Motors
SL BL Motors
SD BL Motors
Vehicles
1/10th SCT/Truck/Monster Truck & 1/8th Buggy/On-road Racing
KV Rating/T Count
With 2S LiPo/6S NiMH: 3660 size motor, KV≤6000
With 3S LiPo/9S NiMH: 3660 size motor, KV≤4000
With 4S LiPo/12S NiMH: 3660 size motor, KV≤3000
With 4S LiPo/12S NiMH: 4268 size motor, KV≤2500(Buggy).
4268 size motor, KV≤3200(On-Road).
Programmable Items
HW30113301
